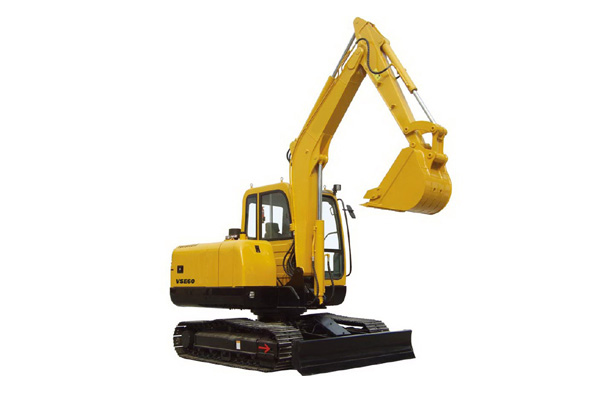

SPECIFICATION |
|
|
Operating weight of total machine（kg） |
6100 |
|
Bucket capacity（m³） |
0.22 |
|
Width of track shoes（mm） |
400 |
|
ENGINE |
|
|
Model |
YANMAR 4TNV94L |
|
Type |
4 cycle Inline Water-cooled direct injection, |
|
Rated l power (kW) |
39kw/2200rpm |
|
PERFORMANCE |
|
|
Ground pressure (Kpa) |
37 |
|
Swing speed（r/min） |
9.9 |
|
Traveling speed high/low（Km/h） |
4.3/2.3 |
|
Grade ability |
35% |
|
Bucket digging force（KN） |
39 |
|
Stick digging force（KN） |
27 |
|
HYDRAULIC SYSTEM |
|
|
Type of hydraulic main pump |
Variable displacement piston pump + Fixed displacement gear pump |
|
Type of hydraulic pilot pump |
Fixed displacement gear pump |
|
Main safety valve adjusted pressure |
21.6MPA |
|
Travel plunger motor |
2×Variable flow axial piston motor |
|
Motor for swing |
1×Variable flow axial piston motor |
|
WORKING RANGE |
|
|
Max. working radius（mm） |
6150 |
|
Max. working radius on the ground（mm） |
6110 |
|
Max. digging depth（mm） |
3850 |
|
Max. digging height（mm） |
6040 |
|
Max.dump height（mm） |
4250 |
|
Min. swing radius（mm） |
2310 |
|
OVERALL DIMENSIONS |
|
|
Length of track on ground (mm) |
2000 |
|
Length of track (mm) |
2495 |
|
Ground clearance of counter weight(mm) |
720 |
|
Tail swing radius (mm) |
1650 |
|
Total length(mm) |
5900 |
|
Total height（Boom）(mm) |
2660 |
|
Min. ground clearance (mm) |
340 |
|
Track gauge (mm) |
1600 |
|
Total width (mm) |
2025 |
|
Height of track shoes (mm) |
590 |
|
Total height（Cab）(mm) |
2660 |
|
Top width (mm) |
2000 |
|
Dozer (Width x Height)(mm) |
2000x375 |
