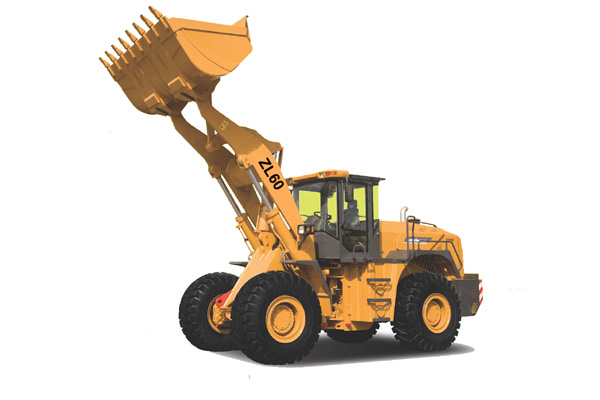

TECHNICAL SPECIFICATION
|
Model |
Unit |
|
|
Main Technical Data |
|
|
|
Total weight |
kg |
18600 |
|
Bucket capacity |
m3 |
3.5 |
|
Rated load |
kg |
6000 |
|
Movable arm lifting time |
S |
5.8 |
|
Three item time |
S |
≤10.5 |
|
Forward I-IV gears |
km/h |
6.8-35 |
|
Reverse I-III gears |
km/h |
6.8-24.5 |
|
Max digging force |
kN |
185 |
|
Dump angle |
。 |
≥45 |
|
Min turning radius |
mm |
6258 |
|
Dumping height |
mm |
3028 |
|
Dumping reach |
mm |
1129 |
|
Overall Dimension |
|
|
|
Overall length |
mm |
8280 |
|
Overall width |
mm |
2897 |
|
Overall height |
mm |
3565 |
|
Wheelbase |
mm |
3300 |
|
Minimun ground clearance |
mm |
460 |
|
Engine |
|
|
|
Engine model |
|
Cummins 6CTAA8.3 or SHANG CHAI C6121 |
|
Engine rated power |
kW |
179/174 |
|
Fuel tank capacity |
L |
350 |
|
Hydraulic oil tank capacity |
L |
250 |
|
Transmission System |
|
|
|
Torque converter type |
|
Single stage, single phase and 3-elements |
|
Cooling mode |
|
Oil cooling pressure circulating |
|
ZF Transmission type |
|
Fixed shaft power shift |
|
Shifts(Forward/Backward) |
|
F4/R3 |
|
Travelling speed |
km/h |
I II III IV |
|
Forward |
|
6.8 12.2 24.5 35 |
|
Bakward |
|
6.8 12.2 24.5 |
|
Axles |
|
|
|
Max. drawing force |
kN |
165 |
|
Gear ratio of main drive |
|
5.111 |
|
Gear ratio of hub reduction |
|
5.167 |
|
Max. gradient capacity |
|
30° |
|
Steering System |
|
|
|
Type |
Middle articulated single--plate frame, flow amp full hydraulic steering |
|
|
Steering angle |
|
±38° |
|
Min. steering dadius outside of rear wheel |
mm |
6258 |
|
System pressure |
MPa. |
16 |
|
Flow rate at engine rated speed |
L/min |
176 |
|
No. of cylinders-BorexStroke |
mm |
2-￠100x425 |
|
|
|
|
|
|
|
|
|
|
|
|
|
Cabin |
|
|
|
Vibration-absorbed humanistic cabin with adjustable steering wheel and chair and streamline dashboard provide low noise comfortable operation and wide eyeshot. |
||
|
Working Equipment |
|
|
|
Single swing arm high fulcrum working equipment, Automatic leveling device as standard confugration |
||
|
Max breakout force |
kN |
|
|
Dumping clearance |
mm |
|
|
Dumping reach |
mm |
|
|
Working Hydraulic System |
|
|
|
Type |
|
Single handle P.P.C |
|
System pressure |
Mpa |
20 |
|
Flow rate at engine rated speed |
L/min |
220 |
|
No. of cylinders-BorexStroke |
|
|
|
Lifting cylinder |
mm |
2-￠160x801 |
|
Tilting cylinder |
mm |
1-￠210x494 |
|
Lifting time |
s |
5.8 |
|
Lowering time |
s |
3.2 |
|
Dumping time |
s |
1.5 |
|
Tyre |
|
|
|
Tyre size |
|
23.5-25-16PR |
|
Brake System |
|
|
|
Service Brake |
Dual chamber dual piping air-over-oil multi-disc wet type brake,actuate 4 wheels |
|
|
Parking brake |
|
Manual air-controlled actuate drum brake act as emergency brake |
|
Refill Capacity |
|
|
|
Fuel tank |
L |
350 |
|
Engine crank cases |
L |
19 |
|
T/C and T/M |
L |
45 |
|
Hydraulic tank |
L |
250 |
|
F/R axles |
L |
70+57 |
|
Standard Equipment |
|
|
|
HUSCO control valve and joystick valve, ZF transmission, Graziano axles,imported hoses and seals. Bergstrom air conditioner |
||
