TR-1604

Contact Us Request a quote
Share This Product:
  • BRIGHT SPOT OF PRODUCT
MAIN FEATURES

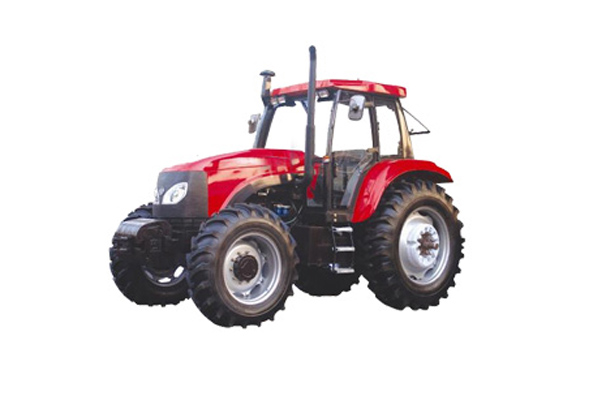

The TR-1604 is developed on the basis of the Italian wheeled tractor chassis technology, adotping the British technology-based 6-cylinder turbocharged engine, which is featured with low specific fuel consumption and better power economic efficiency. The tractor has multiple gears, a wide speed range, and a large capacity of fuel tank, ensuring long-time operations with a single fueling. Besides, it is flexible in steering and easy to operate.

TECHNICAL SPECIFICATION

Engine

Model



LR6105ZWT1

Type



Vertical, inter-cooled, turbo-charged, direct injection diesel engine

Rated power

kw

117.6

Rated rotation speed

r/min

2200

Transmission system

Gears forward/reverse



12/4

Speed range, forward

km/h

2.29 - 29.22

Speed range, reverse

km/h

4.27 - 11.53

Machine body

Wheel base

mm

2848

Front wheel tread

mm

1704 - 2200

Rear wheel tread

mm

1620 - 2200

Min. ground clearance

mm

459

Min. turning radius

m

5.4 - 6.2

Min. operating weight

kg

6500

Specific fuel consumption under rated conditions

g/kW.h

≤235

Tyres (front/rear)



14.9-28/18.4-38

L×W×H

mm

5200*2696*2934mm
