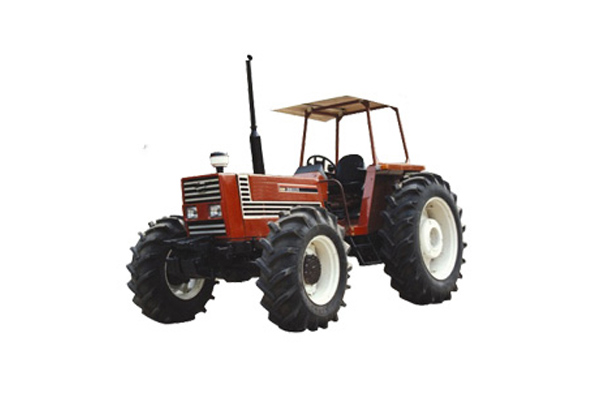

TR-X1004

Contact Us Request a quote
Share This Product:
  • BRIGHT SPOT OF PRODUCT
MAIN FEATURES

Employ original electronic control Perkins engine, high torque,powerful overload performance,low fuel consumption;
Absorb the design features of Italian mechanical T/M of the same power range,with rational layout structure;
Independent oil loop,hydraulic steering system control;safe and reliable wet or disc brakes for rear axle;
Brand new flat floor cab,elegant and comfortable,options:with cold or warm air or A/C; Two independent PTO output speeds,540 and 1000 rpm,adaptable for all operation requirements; High lifting force,with multiple tilling depth control;
Two groups of hydraulic output valves optioned with 3-group hydraulic valves.


TECHNICAL SPECIFICATION

Engine

Type model



Perkins 1104D-E44TA

Features



4-cyl,in-line,water-cooled,turbo-charged,air-air intercooler

Rated power

kw

73.5/100

Rated speed

r/min

2400

Displacement

cc

4400

Transmission System

clutch



12-inch,dry,double-action,independent control

Gears(Forward/Reverse)



12/4

Range of speed(Front)

km/h

2.24-29.3

Range of speed(Rear)

km/h

4.83-13.67

Machine boby

Wheelbase

mm

2648.5

Front tread

mm

1822-2153

Rear tread

mm

1600-2200

Min ground clearance

mm

450

Steering radius

m

6.5

Min operable mass

kg

4450

Standard tire size

inch

14.9-24/16.9-38

Lifting force(taken 610mm behind the lower suspension point)

kN

22

PTO power

kw/ps

64/87

Rated PTO revolution speed

r/min

540/1000

Tilling depth control method



Integrated draft and position control and float control

Rated traction force

kN

24

Electrical system voltage

V

12

Overall Dimension（LXWXH）

mm

4950X2290X2925

Certificates





e-mark homologation
