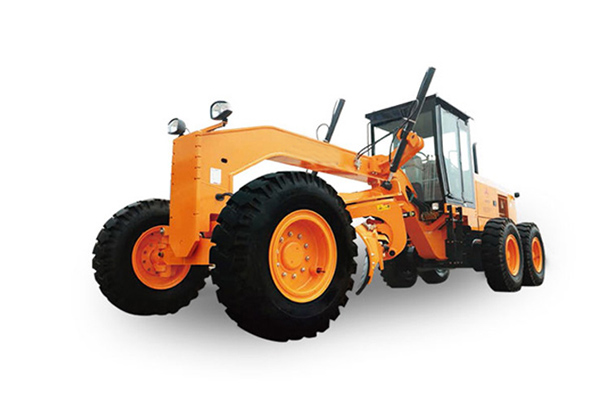

G185/185E


Contact Us Request a quote
Share This Product:
  • BRIGHT SPOT OF PRODUCT
WL motor graders continue our reputation for offering world-class cab and controls, advanced electronics and hydraulics, and optimum productivity... to match your needs in any application.

MAIN FEATURES

1. Cummins China engine (or Shangchai engine) all have a reliable performance and steady big power output in various working conditions.
2. Gearbox can supply more than 3 working speeds, which can ensure the reliability and flexibility of operation.
3. Special front and rear axles for grader are adopted to sure the reliable power supply of engine and its safety.
4. Advanced technologies and imported HUSCO multi-direction valves are applied in the hydraulic system, thus the system’s reliability can be ensured.
5. The internationally advanced hydraulic technology is adopted in the braking system.
6. Newly sealed-hydraulic cylinder and all imported seal components can ensure no leakage of the hydraulic system.
7. Articulated framework and together with the slewing front drum can make sure that the turning radius is small while the flexibility is high.
8. The luxury cab is completely sealed and of broad vision.
9. The grader’s new and unique shape, and streamlined engine hood make maintenance easier and heat radiate faster.
10. Various optional auxiliary equipments are provided: front bulldozing plate, rear rippers, automatic leveling unit tooth-like rolling ring, parking heater and warm air blower.


TECHNICAL SPECIFICATION

Item

G185/185E

Engine

CUMMINS

Model

6BTA5.9-C180

Rated power (kW)

132

Speed (r/m)

2200

Length*Chord Height (mm)

3965x610

Swing Angle

360°

Sloping Angle for Blade

90°

Forward Speed 1-6 (Km/h)

5-38

Reverse Speed 1-3 (Km/h)

5-23

Min. Turning Radius (m)

7.8

Gradeability (%)

20

Tread (mm)

2156

Tyre Size

17.5-25

Incline Angle for Front Axle

±17°

Steering Angle for Front Axle

±45°

Swing Angle for Front Axle

±15°

Min. Ground Clearance (mm)

430

Joint Steering Angle

25° L/R

Braking Mode

Hydraulic brake

Operating Weight (kg)

15500

Max. Tractive Force (kN)

90

Overall Dimension (mm)

9132x2610x3440
